PCIE-2A1C-5G | PCI Express USB-3.0 + USB-C card
No.PCIE-2A1C-5G
The Tittron PCIE-2A1C-5G PCIe USB 3.0 expansion card delivers 2×USB-A +1×USB-C ports with 5Gbps speed. It comes with standard and low-profile brackets to fit full and small form-factor desktops for industrial peripherals and storage devices.
Buyer login — pricing, stock and order history
Information about USB 3.0, 3.1 & 3.2
- USB 3.0, USB 3.1 and USB 3.2 devices are cross-compatible via USB Type-A or Type-C.
- USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1: up to 5 Gbps.
- USB 3.1 Gen 2, USB 3.2 Gen 2: up to 10 Gbps.
Incoterms® 2020 Applies to all Tittron B2B orders.
Overview — PCIE-2A1C-5G | PCI Express USB-3.0 + USB-C card
The Tittron PCIE-2A1C-5G PCI Express USB expansion card adds three USB 3.0 ports to desktop PCs, including two USB Type‑A ports and one USB Type‑C port for flexible peripheral connectivity. Supporting up to 5Gbps transfer speed, this PCIe card delivers fast file transfers and stable communication for external storage, industrial peripherals and data acquisition hardware. It is a cost-effective upgrade to expand USB connectivity without replacing your entire desktop system.

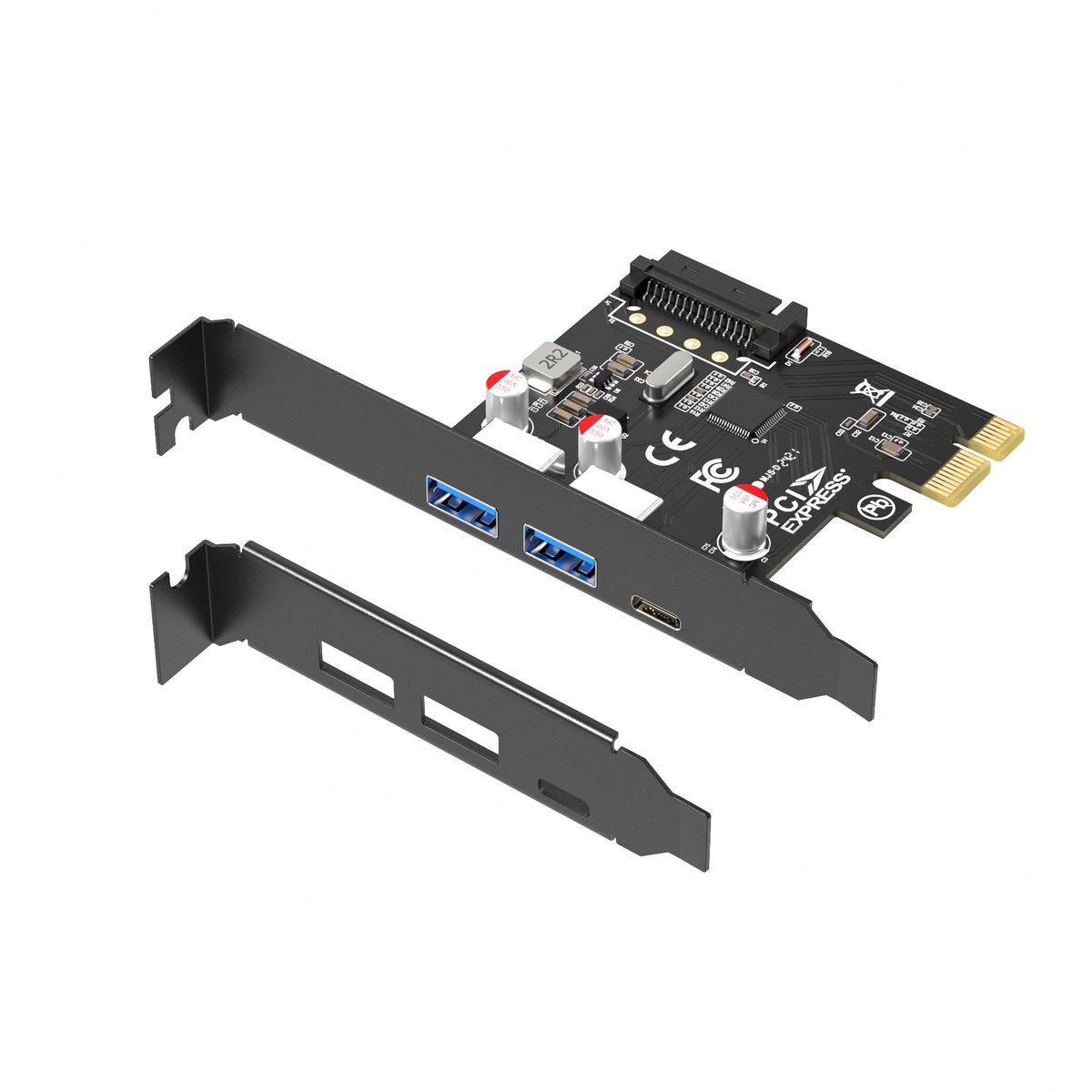

Supplied with both standard-height and low-profile brackets, the PCIE-2A1C-5G with black PCB can be installed in full-size desktops and compact small-form-factor chassis. It is ideal for system integrators, industrial PC builders and professional users needing extra USB ports for multi-device setups, offering reliable USB 3.0 performance for office, industrial and data acquisition applications.
What stands out — PCIE-2A1C-5G | PCI Express USB-3.0 + USB-C card
- ■ PCI Express to USB 3.0 expansion card
- ■ USB 3.0 data transfer rate up to 5Gbps
- ■ Supports simultaneous connection of multiple USB devices
- ■ Compatible with desktop and small-form-factor PCs
- ■ SATA-assisted power for stable device operation
- ■ Compatible with Windows, Linux
Technical specifications — PCIE-2A1C-5G | PCI Express USB-3.0 + USB-C card
- Connector(s)
- Connector Type(s): 1 - PCI Express x4
- Function Ports: 2 - USB 3.2 Gen 1 Type-A (5Gbps)
- Function Ports: 1 - USB 3.2 Gen 1 Type-C (5Gbps)
- Function Ports: 1 - SATA Power (15 pin, Internal)
- Hardware
- Interface: PCI Express
- Bus Type: PCI Express
- Card Type: Standard Profile (LP bracket incl.)
- Port Style: Integrated on Card
- Slot Compatibility: PCIe x4, x8, and x16 Slots
- Performance
- Type and Rate: USB 3.0 (5Gbps)
- Industry Standards
- Industry Standards: PCI Express Base Specification Rev. 3.0
- Industry Standards: USB 3.2 Gen 1 Specifications
- MOQ: 500 pcs
- Lead time: 25 days
- Warranty: 24 months
- Certification: CE · FCC · RoHS
- OEM / ODM: Supported
DOWNLOAD — PCIE-2A1C-5G | PCI Express USB-3.0 + USB-C card
Datasheets, drivers and firmware for this model. Files open in a new tab.
Pairs well with
Frequently asked questions
What ports does the Tittron PCIE-2A1C-5G provide?
It offers 2 × USB 3.0 Type-A ports and 1 × USB 3.0 Type-C port, total three USB 3.0 ports.
What is the maximum transfer speed?
It supports USB 3.0 up to 5Gbps for fast file transfer and peripheral communication.
Can this card fit small form factor PC cases?
Yes. It includes both standard-profile and low-profile brackets for different chassis.
Who is this PCIe expansion card suitable for?
It works well for system integrators, industrial PC manufacturers and professional users requiring extra USB connectivity.
Are the three ports sharing bandwidth?
Yes, all three USB ports share the total 5Gbps bandwidth. A single device can reach up to 5Gbps.
